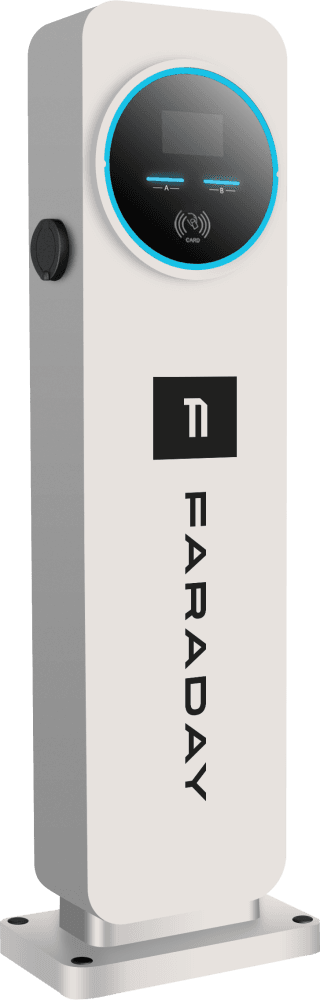

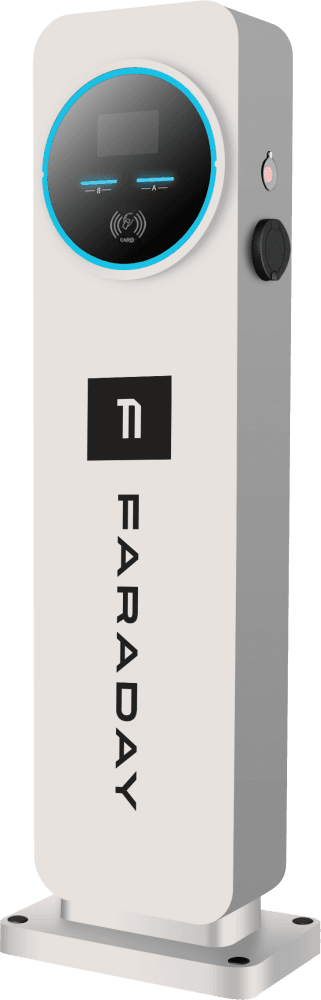

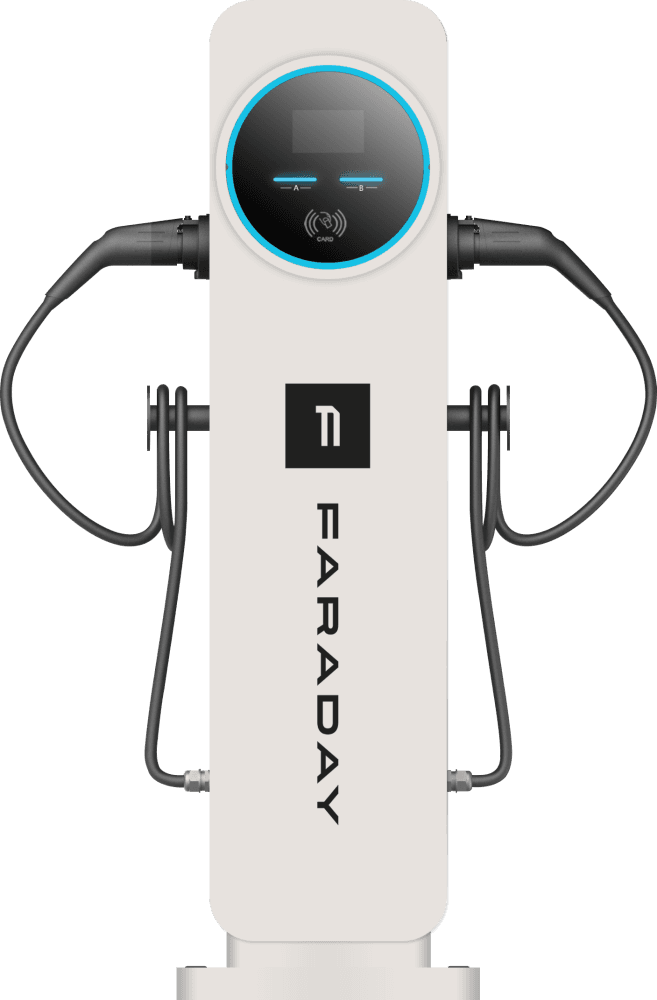

Alpine AC Charger
Powerful.  Rugged.  Intelligent.
Alpine AC chargerAlpine AC chargerAlpine AC charger
Choose the Alpine for your projectBuy now

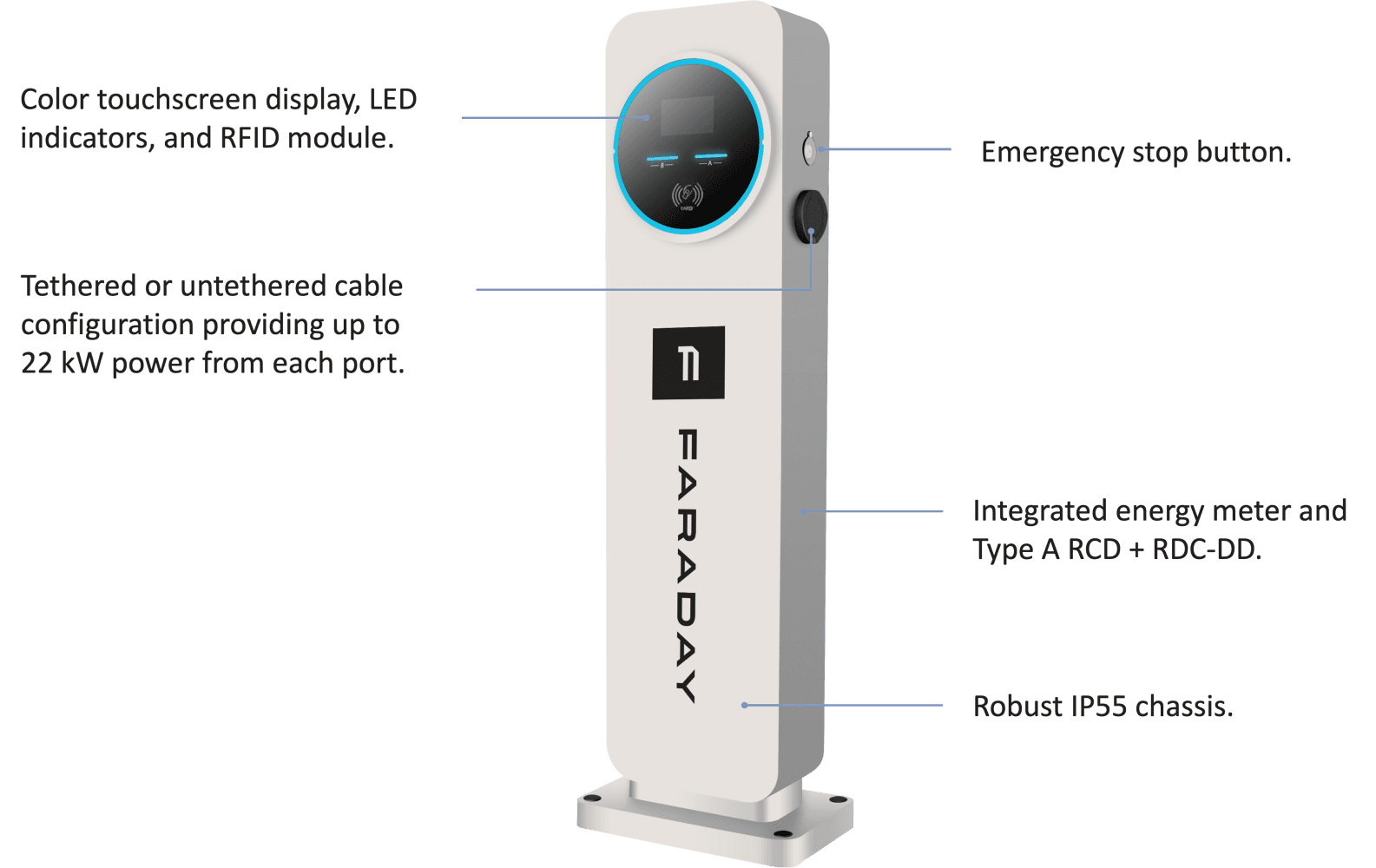

Versatile and elegant

A smart and rugged AC charger ideal for public charging at commercial and retail locations.
Rhino DC Charger

Intelligent design

Keep connected to the network over Wi-Fi, Ethernet, or the 3G/4G mobile network.

Wi-Fi communicationWi-Fi
3G/4G mobile network3G/4G mobile network
Ethernet communicationEthernet

Ready for integration with a smart management via Open Charge Point Protocol (OCPP) 1.6J.

Management system communicationOCPP 1.6J

Specifications

Model
F3003
Rated power
44 kW
Phases
3P+NE
Input voltage
380 VAC
Rated current
64 A
Frequency
50/60 Hz
Vehicle connection
Socket or tethered cable
Plug configuration
Type 1, Type 2, or GB/T
Human machine interface
13mm (5") HD touchscreen and two LED indicators
OCPP 1.6J support
Checkmark
Wi-Fi support
Checkmark
3G/4G mobile support
Checkmark
Residual current protection
Type A + RDC-DD
Ingress protection
IP55 / IK10
Tamper-proof screws
Checkmark
Weight
65 kg
See the datasheet
