Rhino DC Charger
More power.  More features.
Rhino DC ChargerRhino DC ChargerRhino DC Charger
Choose the Rhino for your projectBuy now

Power meets beauty

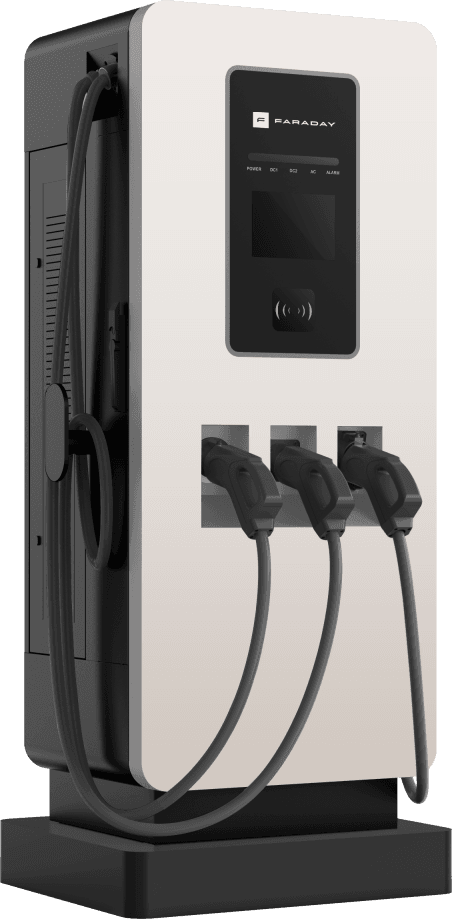

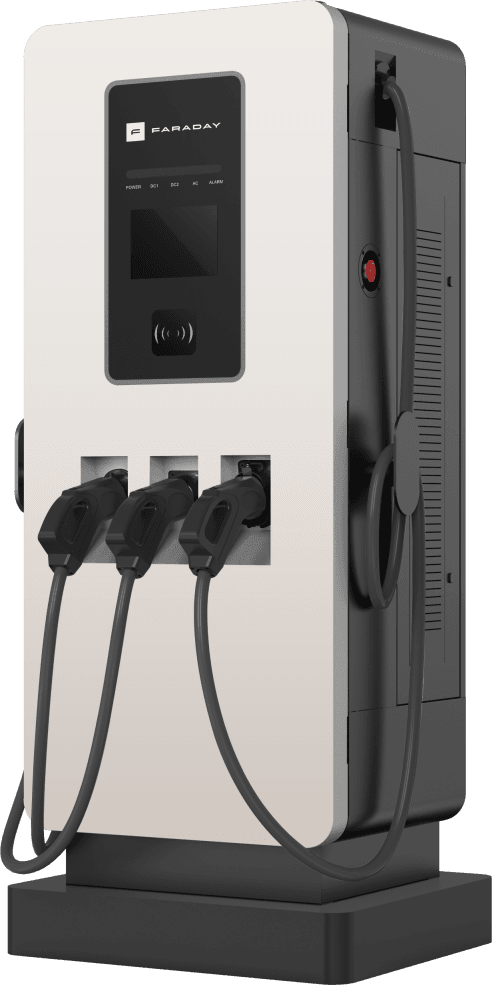

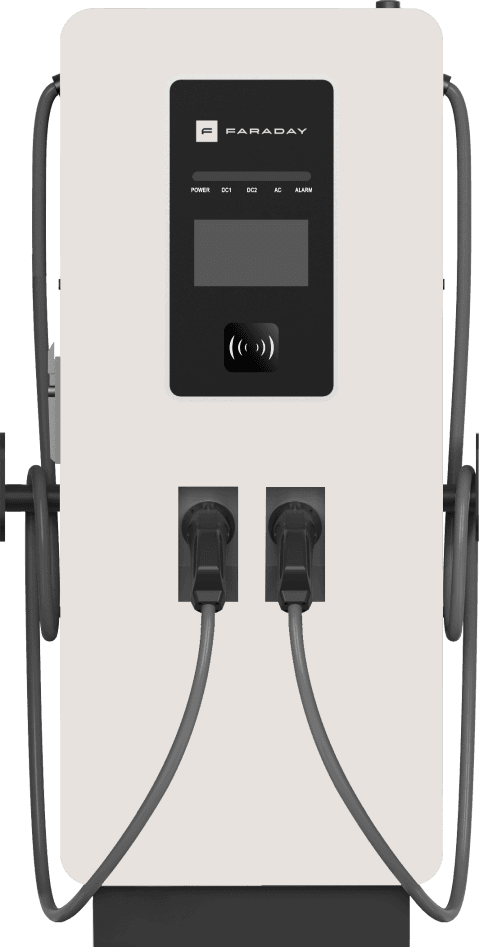

A beautifully designed, easy-to-use Direct Current (DC) fast charger perfect for on-the-go charging and fleet operations. And loaded with tons of features.
Rhino DC Charger

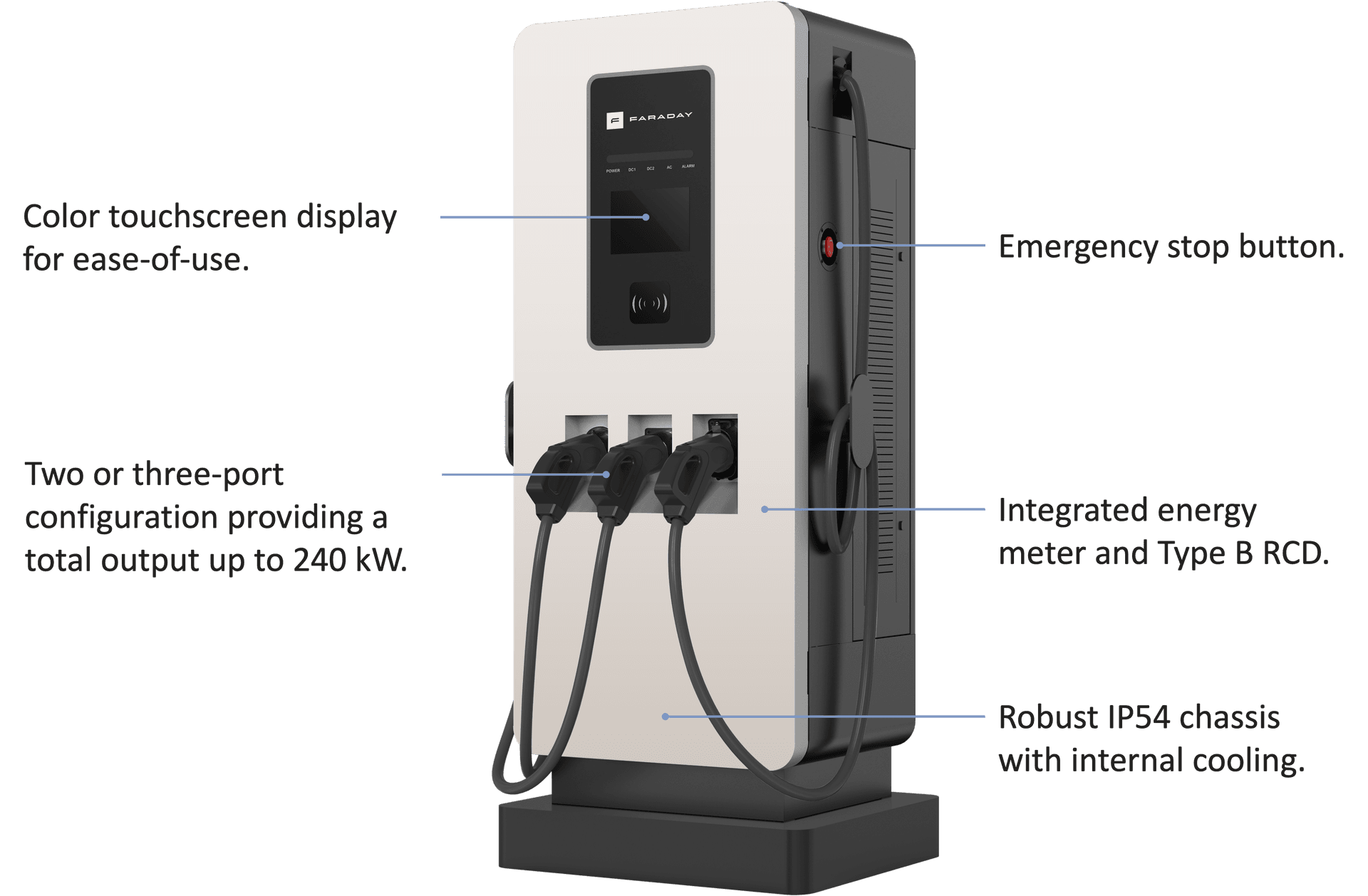

Intelligent design

Keep connected to the network over Wi-Fi, Ethernet, or the 3G/4G mobile network.

Wi-Fi communicationWi-Fi
3G/4G mobile network3G/4G mobile network
Ethernet communicationEthernet

Ready for integration with a smart management via Open Charge Point Protocol (OCPP) 1.6J.

Management system communicationOCPP 1.6J

Specifications

Model
F3006
F3007
F3008
F3009
Rated power
90 kW
120 kW
180 kW
240 kW
Phases
3P+NE
3P+NE
3P+NE
3P+NE
Input voltage
380 VAC
380 VAC
380 VAC
380 VAC
Rated current
150 A
200 A
300 A
400 A
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
OCPP 1.6J support
Checkmark
Checkmark
Checkmark
Checkmark
Wi-Fi support
Checkmark
Checkmark
Checkmark
Checkmark
3G/4G mobile support
Checkmark
Checkmark
Checkmark
Checkmark
Residual current protection
Type B
Type B
Type B
Type B
Ingress protection
IP55
IP55
IP55
IP55
Tamper-proof screws
Checkmark
Checkmark
Checkmark
Checkmark
Weight
300 kg
340 kg
360 kg
370 kg
Choose the Rhino for your projectBuy now
